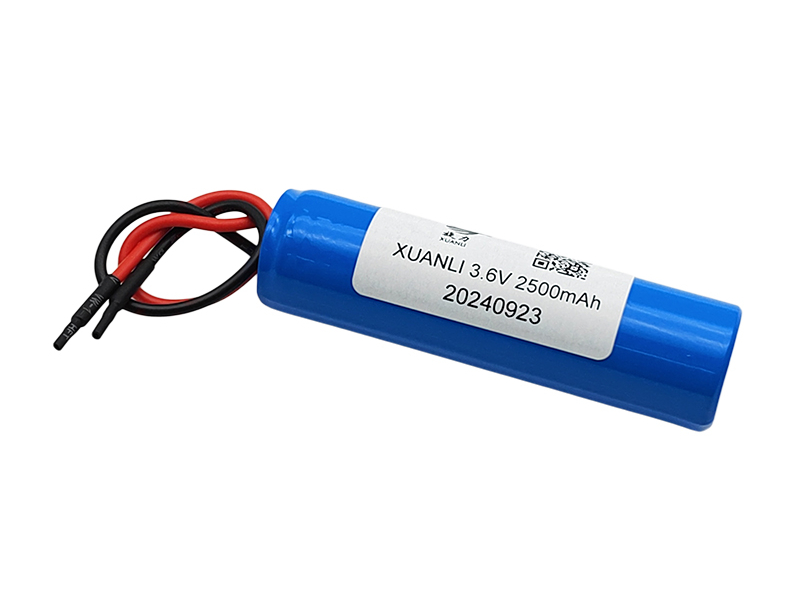

3.6V cylindrical lithium battery Model: XL 3.6V 2500mAh
3.6V cylindrical lithium battery technical parameters (specific can be designed according to customer requirements - voltage/capacity/size/line)
Battery model: 18650
· Single battery voltage: 3.6V
· Nominal voltage after battery pack combination: 3.6V
· Battery capacity: 2.5Ah
· Battery combination: 1 series and 1 parallel
· Battery voltage range after combination: 3.0~4.2V
· Combined battery capacity: 2.5Ah
· Battery power: 9Wh
· Battery pack size: 20*20*72mm
· Maximum discharge current: <2.5A
· Instant discharge current: 5~7.5A
· Maximum charging current: 0.2~2C
· Charge and discharge times: > 500 times
· Main chips: (Seiko, TI)
3.6V cylindrical lithium battery
· Conform to relevant national or international battery standards
· All battery products are tested before leaving the factory
